This site features new ideas for easy-to-build simple electric motors originally designed by Stan Pozmantir for his grand prize winning science fair project.

On this site you will find:

  • Real brushless DC motors based on different physics principles - fast, powerful, and great for science experiments.
  • Detailed step-by-step assembly instructions (with pictures).
  • Easy explanation on how these motors work and essential project research information – from beginner to advanced levels.
  • 17 different simple motor kits for all ages and levels of education.
  • Simple electric generators and motor speed measurement tools.
  • From inventors of the first ever reed switch motor kit (© Simple Motors, 1999) - the easiest electric motor to build (and understand how it works!)

Motor Galleries

Back to Galleries

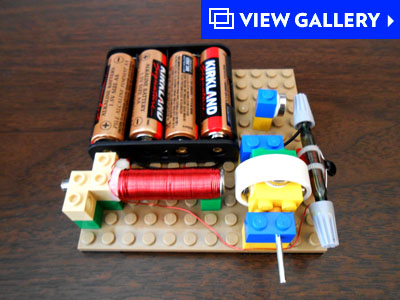

Easy to build QuikLock™ kits

Easy to build QuikLock™ kits

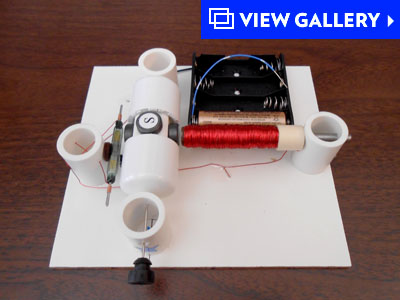

Original brushless motor kits

Original brushless motor kits

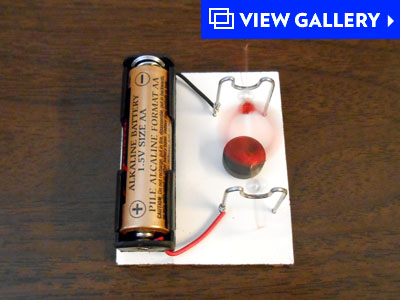

Simple motors for less than $4

Simple motors for less than $4

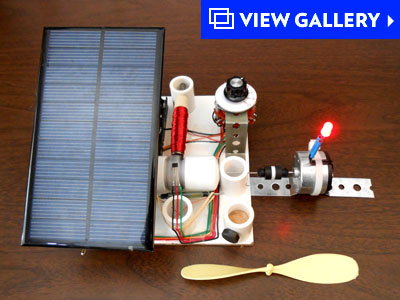

Experiment with your motor!

Experiment with your motor!

Kit #11 - Basic Reed Switch Motor Kit

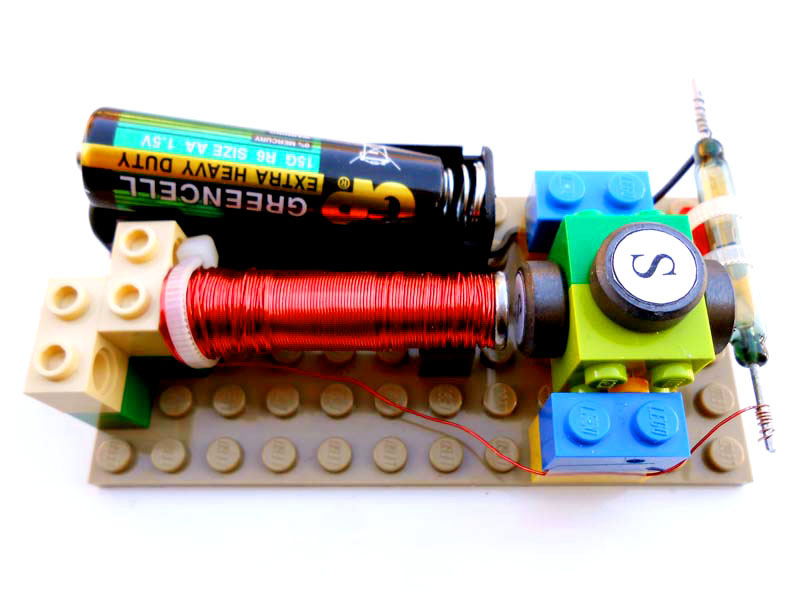

Kit #11 – Basic Kit

This is the simplest motor kit that could be assembled in 30 minutes!

Despite its simplicity it is a perfect learning tool to make first steps into wonderful world of electricity and magnetism.

Efficient design (rotational speed up to 2100 RPM) guarantees this motor to work every time.

Lots of fun for years!

Back to Galleries

Kit #12 - Fast Assembly Basic Kit

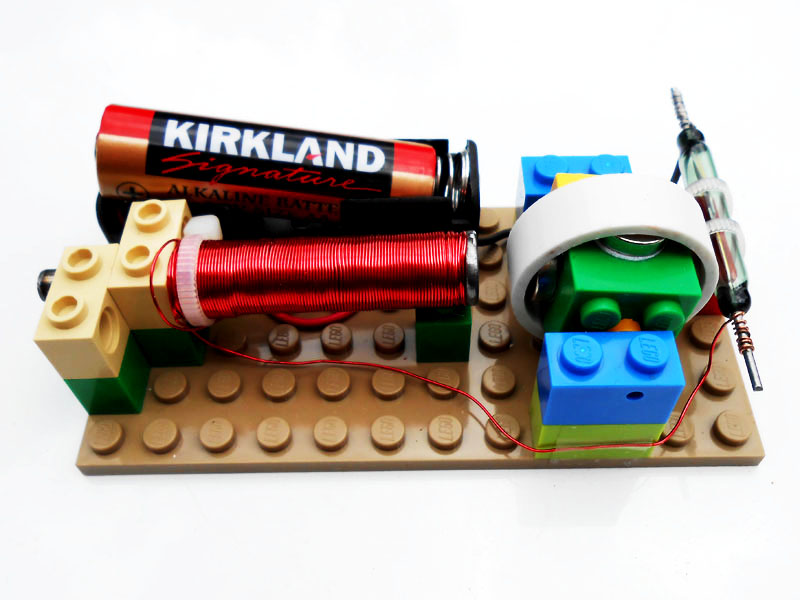

Kit #12 – Fast Assembly Basic Kit

Same as Kit #11 with additional features:

  • Uses strong neodymium magnets secured by safety ring.
  • Includes prewound electromagnet.
  • Assembly time less than 20 min!
  • No messy glue. No tools required.
  • Fast (over 2500 RPM on 1.5 V) and reliable.

Back to Galleries

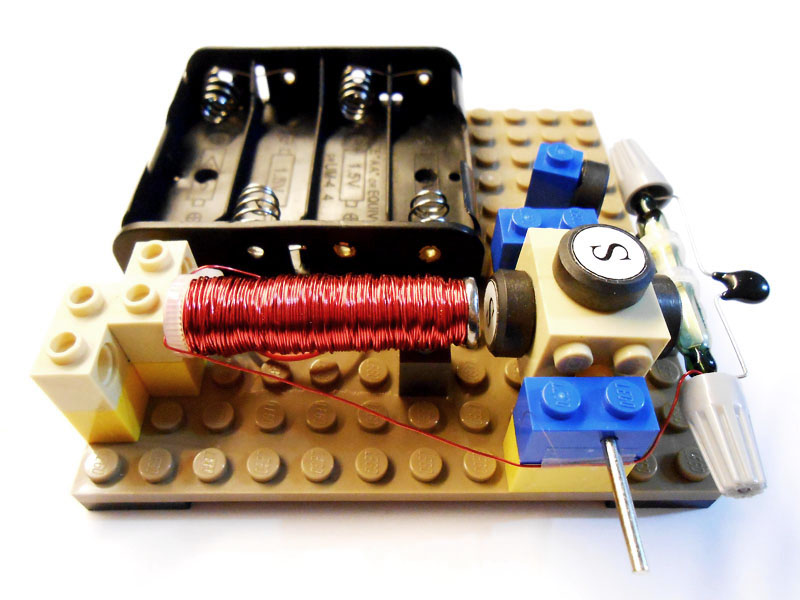

Kit #13 - Advanced Motor Kit

Kit #13 – Advanced Kit

In addition to all features of a basic motor this kit includes extra parts:

  • Variable speed control that allows changing the motor speed from full stop to maximum speed (up to 6000 RPM).
  • Second rotor parts and extra magnets for experiments with 2 and 4 magnet rotors.

Lots of experimentation possibilities!

Back to Galleries

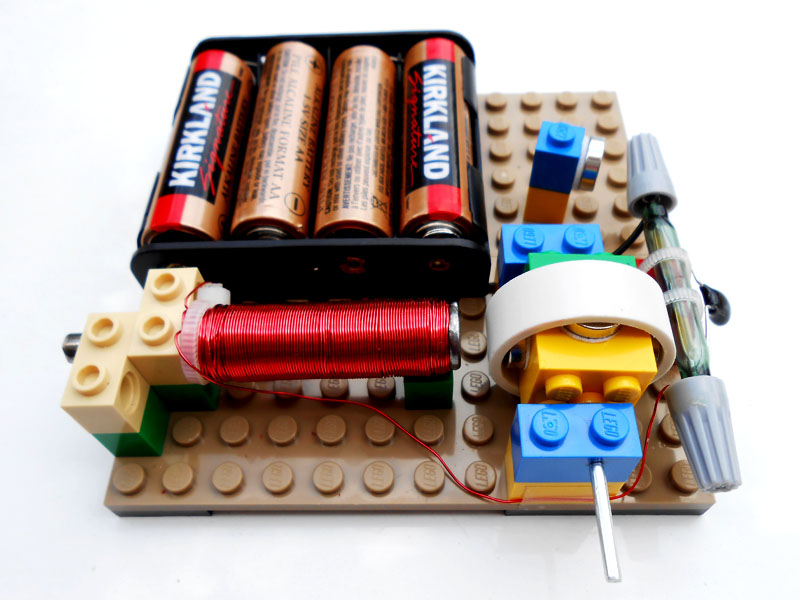

Kit #14 - Fast Assembly Advanced Kit

Kit #14 – Fast Assembly Advanced Kit

Same as Kit #13 with additional features:

  • Uses strong neodymium magnets secured by safety ring.
  • Includes prewound electromagnet.
  • Assembly time less than 30 min!
  • No messy glue. No tools required.
  • This is the fastest motor (over 6000 RPM on 6 Volts)!

QuikLock™ motors are not Lego® products even if they contain original and modified Lego® bricks and plates. We reserve the right to use other materials in the future. All warranties provided by Simple Motors. LEGO® is a trademark of the LEGO Group of companies which does not sponsor, authorize or endorse these products.

Back to Galleries

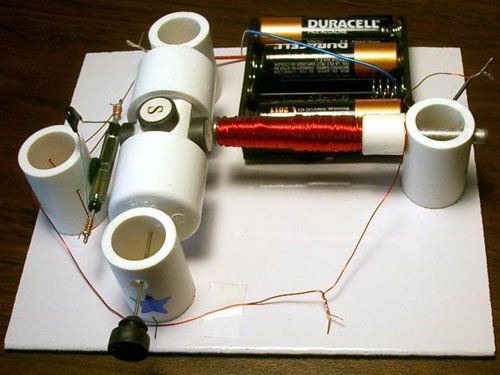

Kit #4 – Original Reed Switch Motor

Kit #4 – Reed Switch Motor

Original reed switch motor – our most popular kit in 1999-2013!

Allows to experiment with 4 different voltages: 1.5, 3, 4.5 and 6 Volts.

Speeds up to 3000 RPM.

Back to Galleries

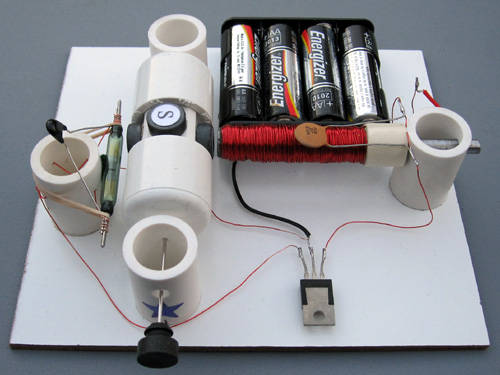

Kit #5 – Motor with Transistor Control

Kit #5 – Motor with Transistor Control

Reed switch motor with transistor control which increases the life of the reed switch.

Easy to build, but requires some soldering.

Back to Galleries

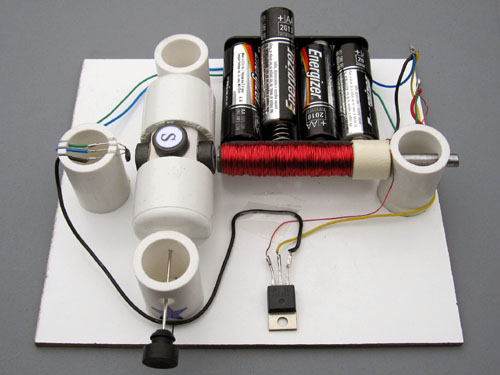

Kit #6 – Motor on a Hall Effect IC

Kit #6 – Motor on a Hall Effect IC

Motor using Hall Effect IC as a sensor. This is our simple version of common industrial brushless motor.

It is fast, quiet, and the most reliable motor that can work for years!

Back to Galleries

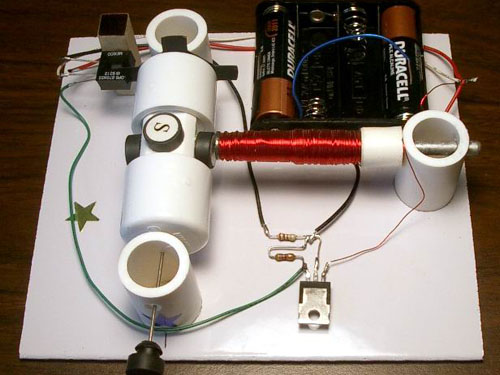

Kit #7 – Motor with Optical Control

Kit #7 – Motor with Optical Control

Motor using optical interrupter as a sensor.

This is quiet, reliable but a little slower motor (typical speed up to 2000 RPM).

Back to Galleries

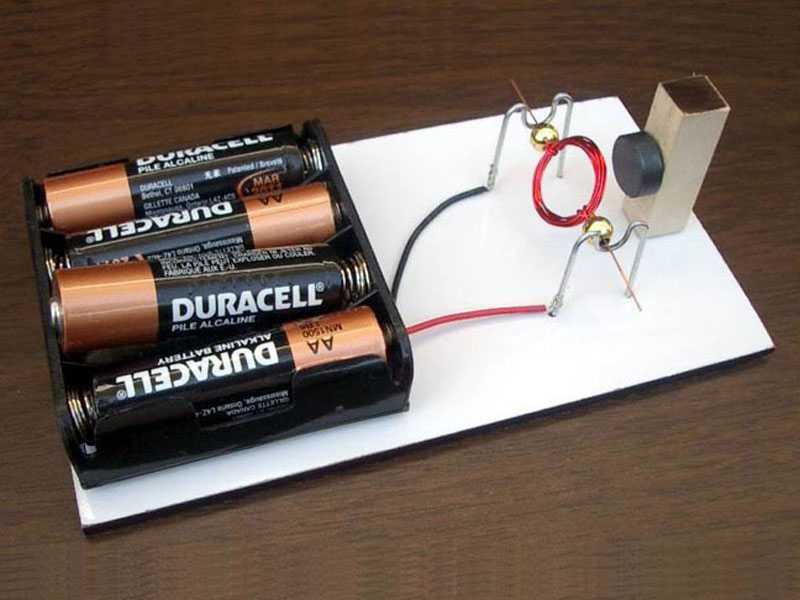

Kit #15

Kit #15

This is our version of well known simple motor that provides the ability to do some experiments with it.

  • You may build one of four configurations with one or two magnets placed at the top, bottom, or on the sides.
  • Experiment with 4 different voltages: 1.5, 3, 4.5 and 6 Volts.
  • Enough wire to experiment with different size wire coils.

Back to Galleries

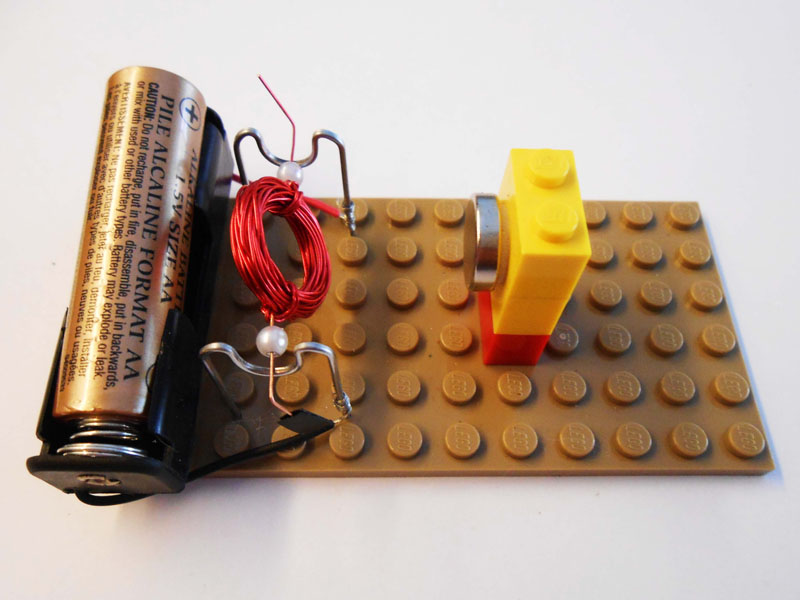

Kit #16

Kit #16

Another version of simple motor with rotating coil in the magnetic field designed for these experiments:

  • Compare regular grade ceramic magnet with strong neodymium magnet (grade N50).
  • Easily change the distance between the magnet and the coil.
  • Make different size wire coils.

No messy glue. No tools required.

Back to Galleries

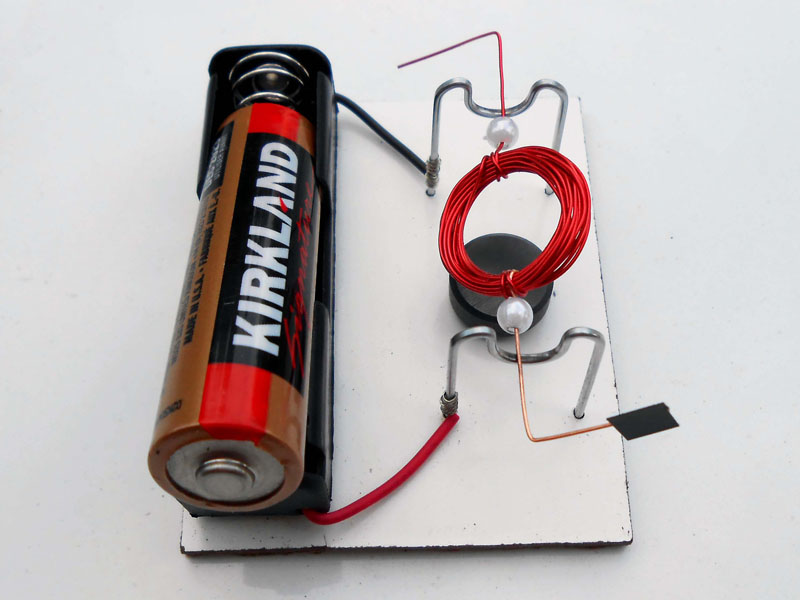

Kit #17

Kit #17

Simple brushed conventional motor for only $3.99 each!

Sold in classroom sets of 10.

Buy 2 sets or more and get free RPM measurement attachment – your students will be able to compare the speed of their motors.

Buy 4 sets and get in addition free Rapid Assembly QuikLock Kit #12!

Back to Galleries

RPM Measurement Tools

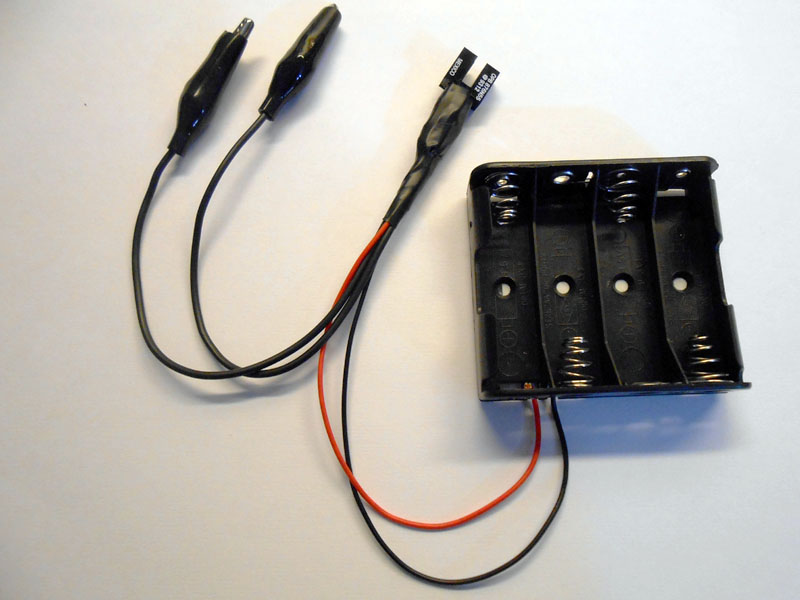

RPM Measurement Attachment

Simple inexpensive attachment for measuring the speed of any conventional motor where the wire coil rotates in the static magnetic field.

Highly recommended for groups of students – they love to compare their motors!

Connects to frequency meter; if you do not have one you may consider RPM Measurement Kit #2.

Back to Galleries

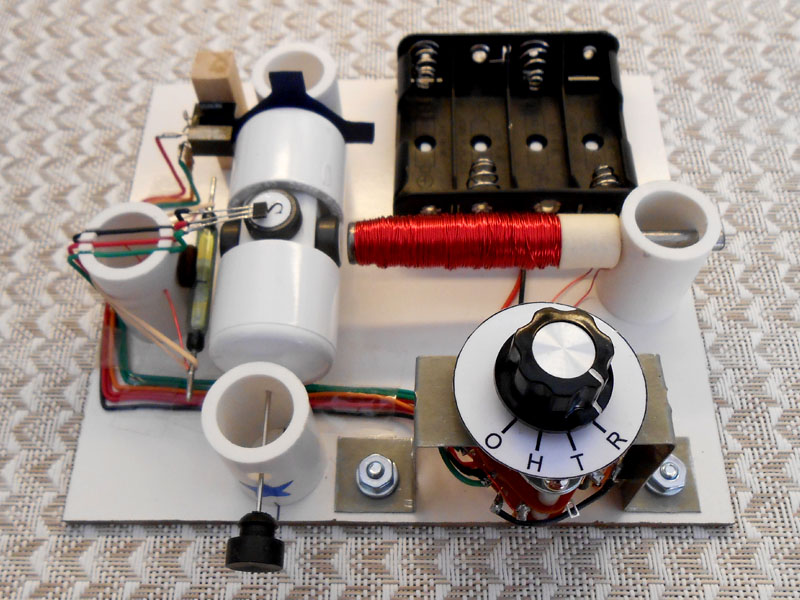

All-in-One Kits #8 and #9

All-in-One Motor Kit #9

All-in-one kits include all parts required for assembly of 4 brushless motors:

  • Simple reed switch motor
  • Reed switch motor with transistor
  • Motor on a Hall Effect IC
  • Motor with optical control.

With easier Kit #8 you can build one motor at a time.

Kit #9 (shown above) allows for easy switching between different motor configurations. It is an advanced kit.

Back to Galleries

Simple Generator Kit

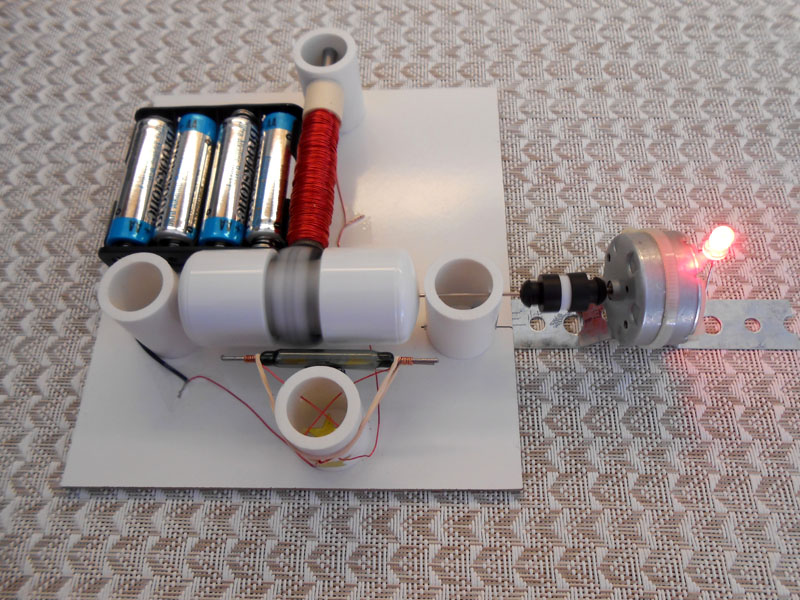

Simple Electric Generator Kit

Most electric motors built from our kits are powerful enough to rotate precision industrial motor which can generate enough power to light up a super bright LED.

Adding a simple generator to your motor is the best way to demonstrate how electrical energy is converted to mechanical energy, and then back to electrical power.

It is also a helpful tool to measure and calculate torque and efficiency of your motor.

Back to Galleries

Solar Panel Kit

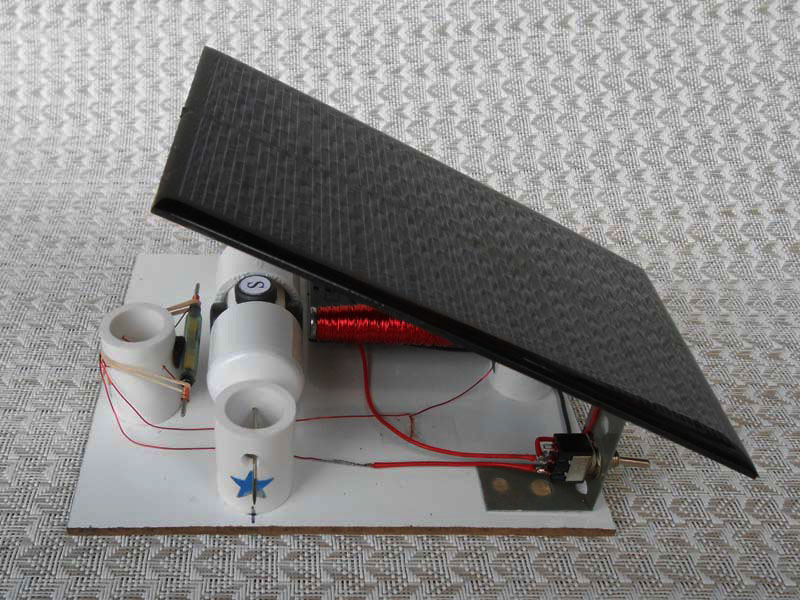

Solar Panel Kit

If you are looking for a renewable energy project – solar power module is a perfect addition to your motor kit!

This powerful 1.6 W solar panel could be added to motor kits #1-9, 13-14.

It provides enough power for the motors to work under direct sunlight. Solar panel can also recharge the batteries.

This kit adds a main power switch.

Back to Galleries

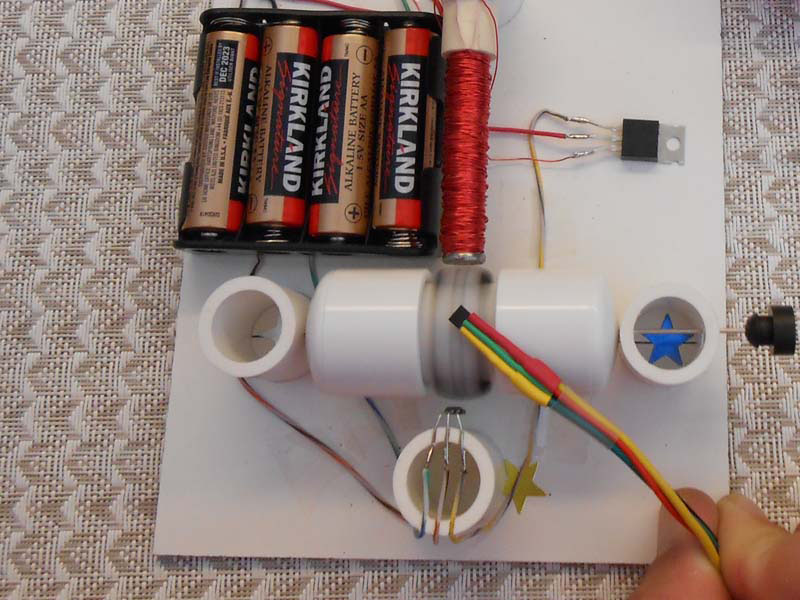

Motor Speed Measurement

Motor Speed Measurement

Advanced multimeter and assembled attachment for real time motor speed measurement.

It works on all brushless motors available at our site.

The RPM measurement tool is based on frequency measurement. If you already have a multimeter that can measure the frequency in Hz you might be interested in inexpensive standalone RPM measurement attachment.
